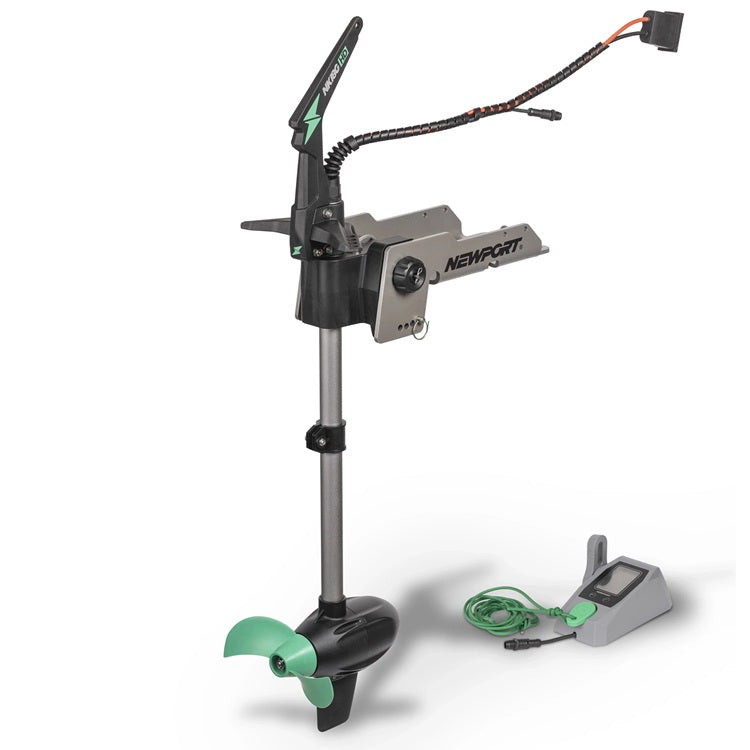

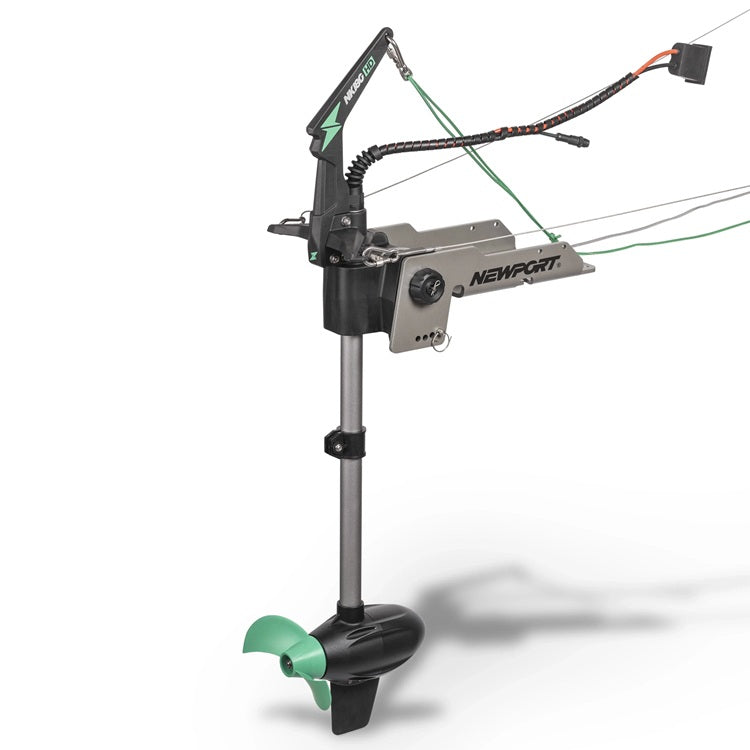

NK180 HD Electric Kayak Motor

The NK HD Series represents the next generation of Newport’s flagship kayak motors. Built around a heavy duty durability standard, the NK180 HD combines rugged composite materials, updated architecture, precision bearings and overbuilt communication cable plugs - all as standard equipment. Designed specifically for kayak anglers, the NK180 HD delivers reliable brushless performance without compromise. Weighing in at just over 14 lbs, and kicking out 600W of power, this is our most versatile kayak motor.

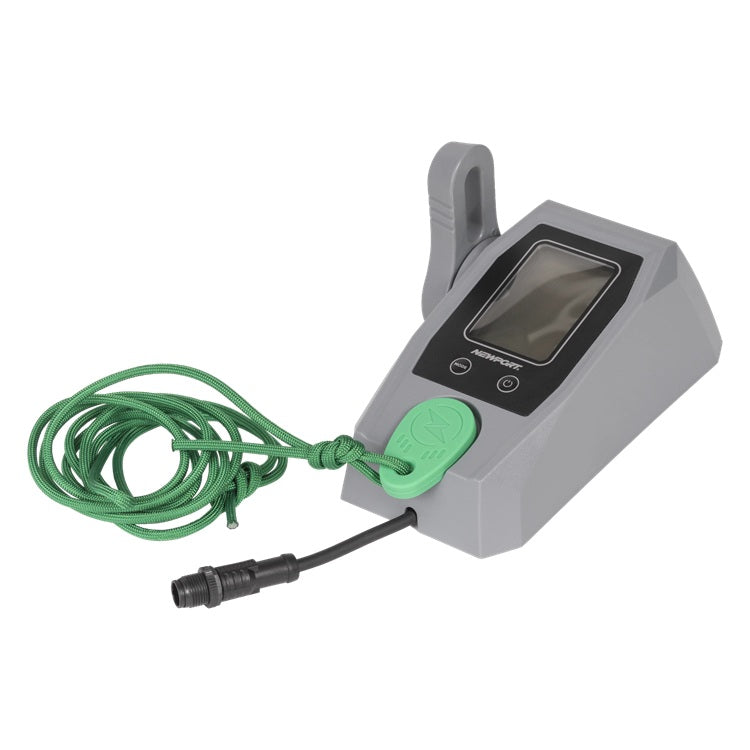

Included: NK180 HD motor, NK HD Steering Triangle, NK HD Retract Arm w/ Stainless Carabiner + Ronstan micro block, NK HD Communication Cable with oversized M12 connectors, NK HD Digital Speed Controller w/ Display, Four Bolt, Aluminum Motor Mounting bracket, Height Adjustment Clamp, Reverse Control Line and, Handle, Motor Lift Control Line and Handle, Emergency Stop Key, (2) Carabiner and pulley sets for rigging options, Additional nylon cord, Coated Stainless Steering, Cable Kit (may not be compatible w/ every brand of kayak), Installation Kit, Hardware installation kit with required tools. BATTERY NOT INCLUDED

_____________________________________________

Features

• Low Profile Lifting: Attachments Included

• Flexible Battery Options: Choose the setup that ?ts your needs and budget

• Lifting Arm Geometry: Built for strength & motor alignment when lifting

• Lightweight & Portable: Durable polymer composite construction

• Digital Throttle & LCD Screen: Real-time speed, power, and battery monitoring

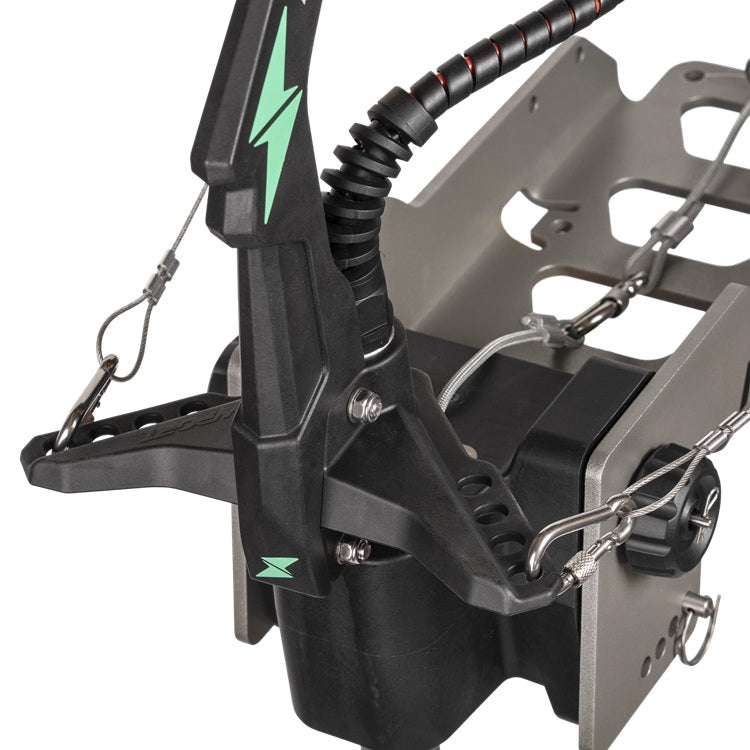

• HD Steering Triangle: Stronger steering control and long-term durability

• HP Equivalent: Serious power, zero emissions

• Magnetic Safety: For emergency shuto?

• Fresh & Saltwater Compatible: Engineered for every environment

• NK HD Connector: More secure connection built for long-term use

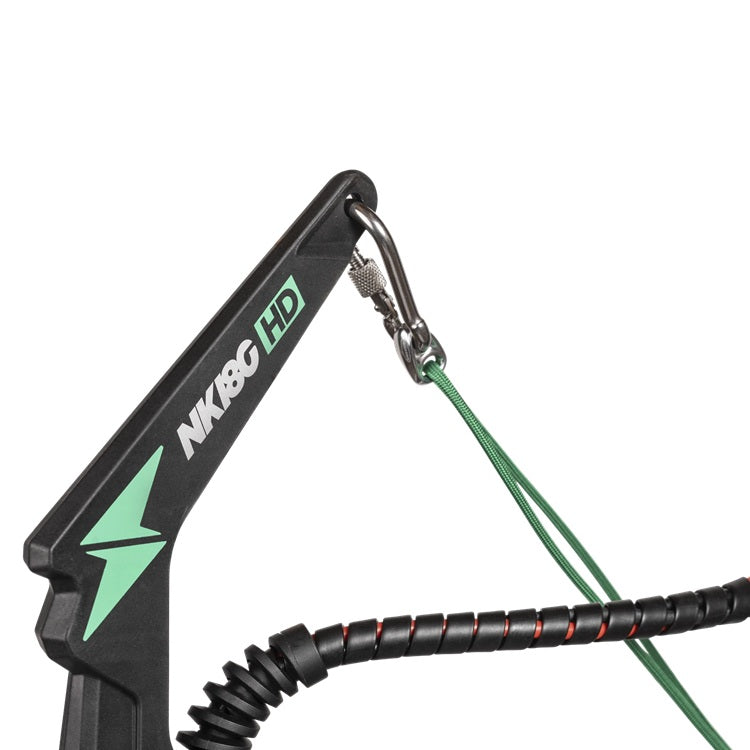

• HD Retract Arm: Smoother lift and stow with less strain during use

• Precision Bearings: Quieter operation and extended service life

_____________________________________________

Specifications

Peak Power: 600W (1.8 HP equivalent)
Propulsion Type: Outboard Kayak Motor
Purpose: 25 AMPs
Power: 65lb Thrust (1.8 HP Equivalent)
Shaft Length: 21.7”
Weight: 14.3lbs
Battery Meter: Digital Battery Percentage & Voltage Display

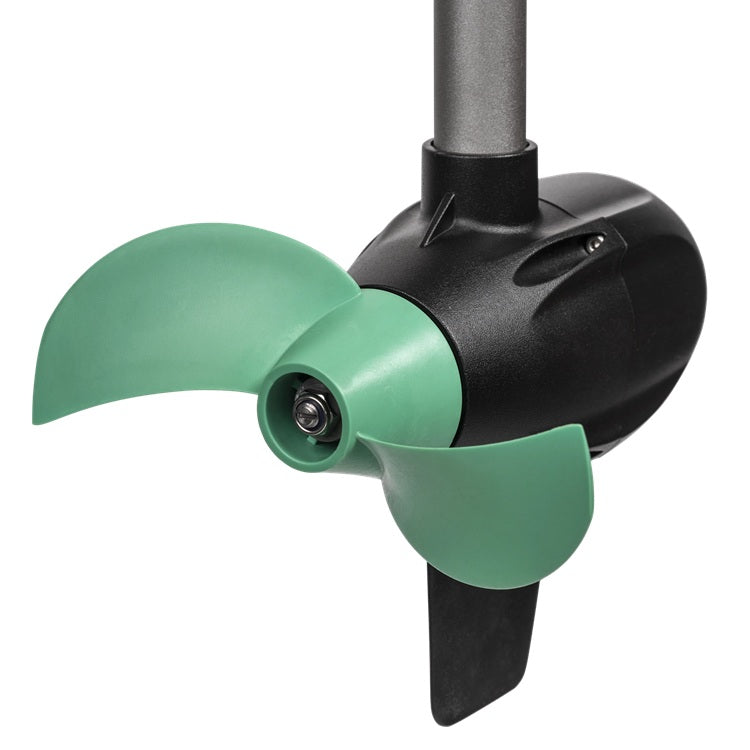

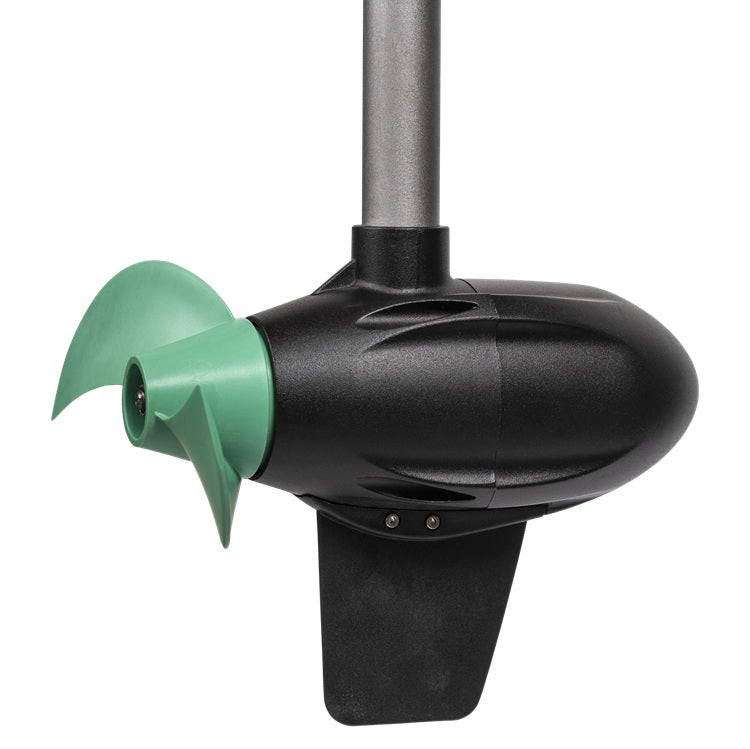

Stock Propeller: 2 Blade (NK180PRO)
Motor: Brushless
Max Amp Draw: 25 AMPs
Battery Requirements: One 24V LiFeP04
Mount: 4 Bolt Pattern
