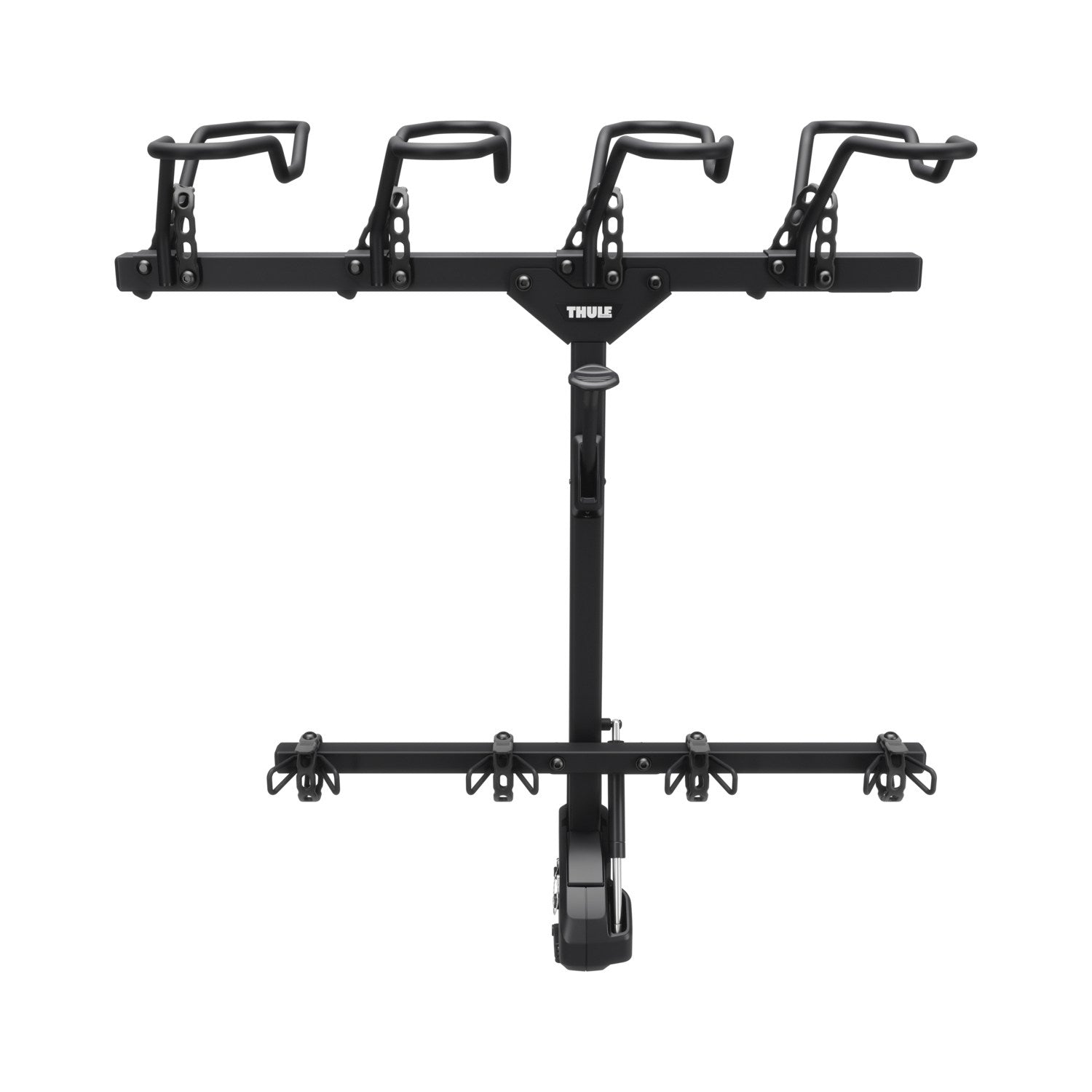

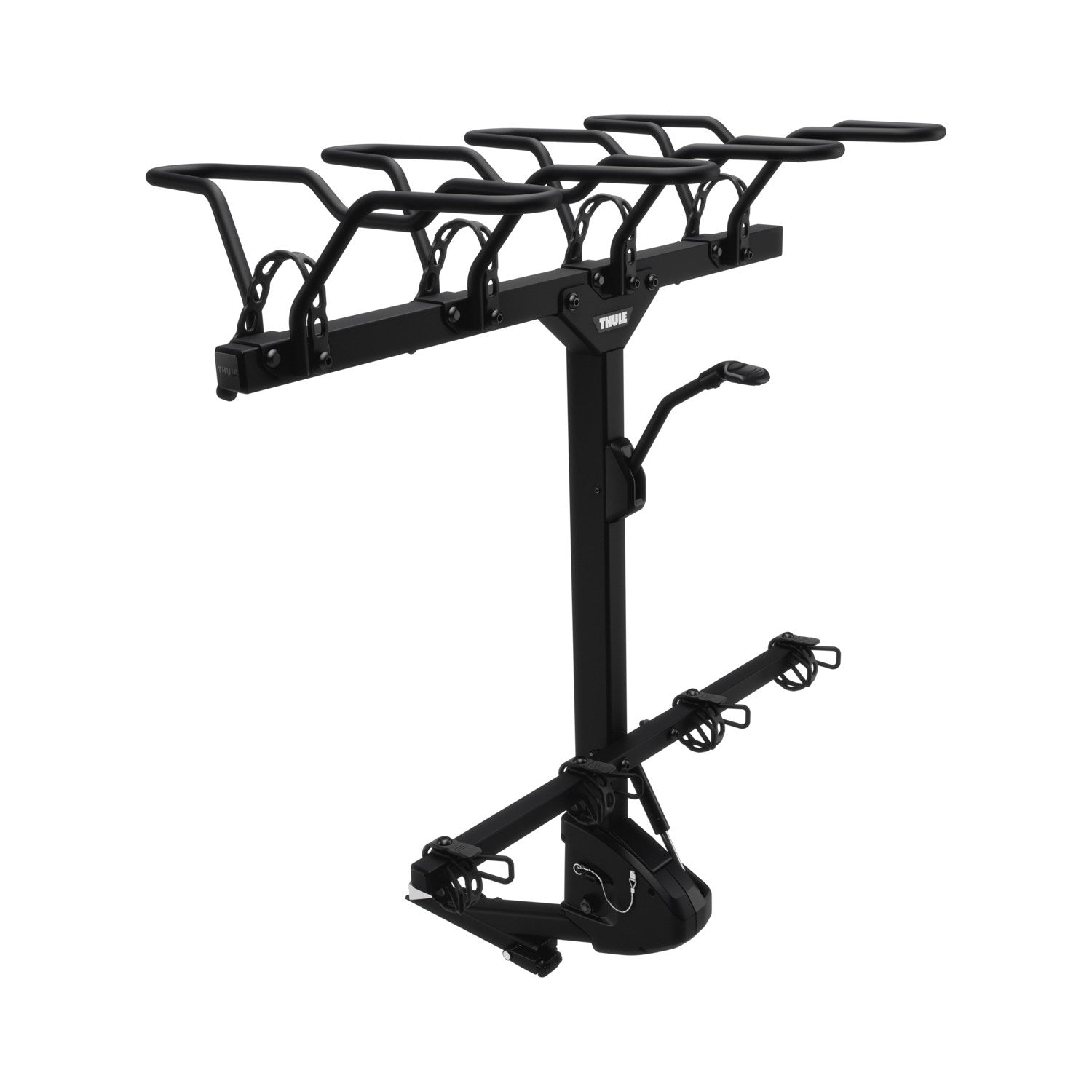

ReVert 4-Bike Rack

The Thule ReVert bike rack transforms your vehicle into a high-capacity bike transporter. By loading bikes vertically, you maximize the number of bikes per journey while making the most efficient use of space around your vehicle. Every trip can easily become a group adventure. The dual TiltAssist damper makes handling practically effortless. Simply push down the tilt release lever and tilt the rack down, roll up the bikes, give the tilt release lever a second pushdown, and raise the rack back up. The damper makes it a breeze as it gives you weight assistance in both directions with bikes loaded.

Engineered for convenience, the rack's tilt-down feature grants easy trunk access. Loading is quick and straightforward – simply roll your bikes in and out of the wheel baskets with minimal lifting efforts. Save all your energy for the upcoming ride! Built with solid steel construction, it withstands the rigors of the road and is backed by rigorous testing standards at the Thule Test Center. Its elastic wheel straps and tool-free AutoAttach system mean your bikes are secured fast and you’re off to the trails in no time.

_________________________________________________

Features

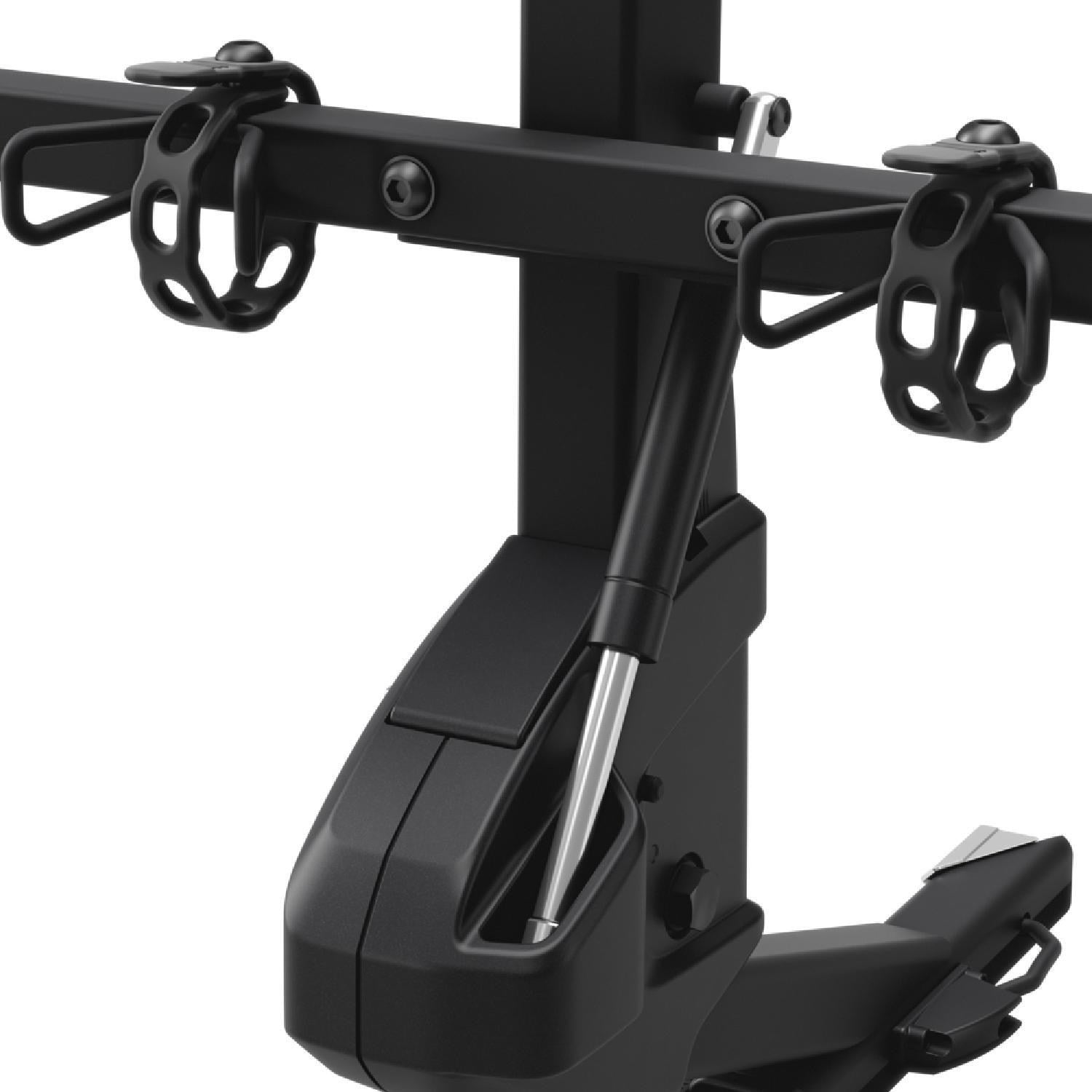

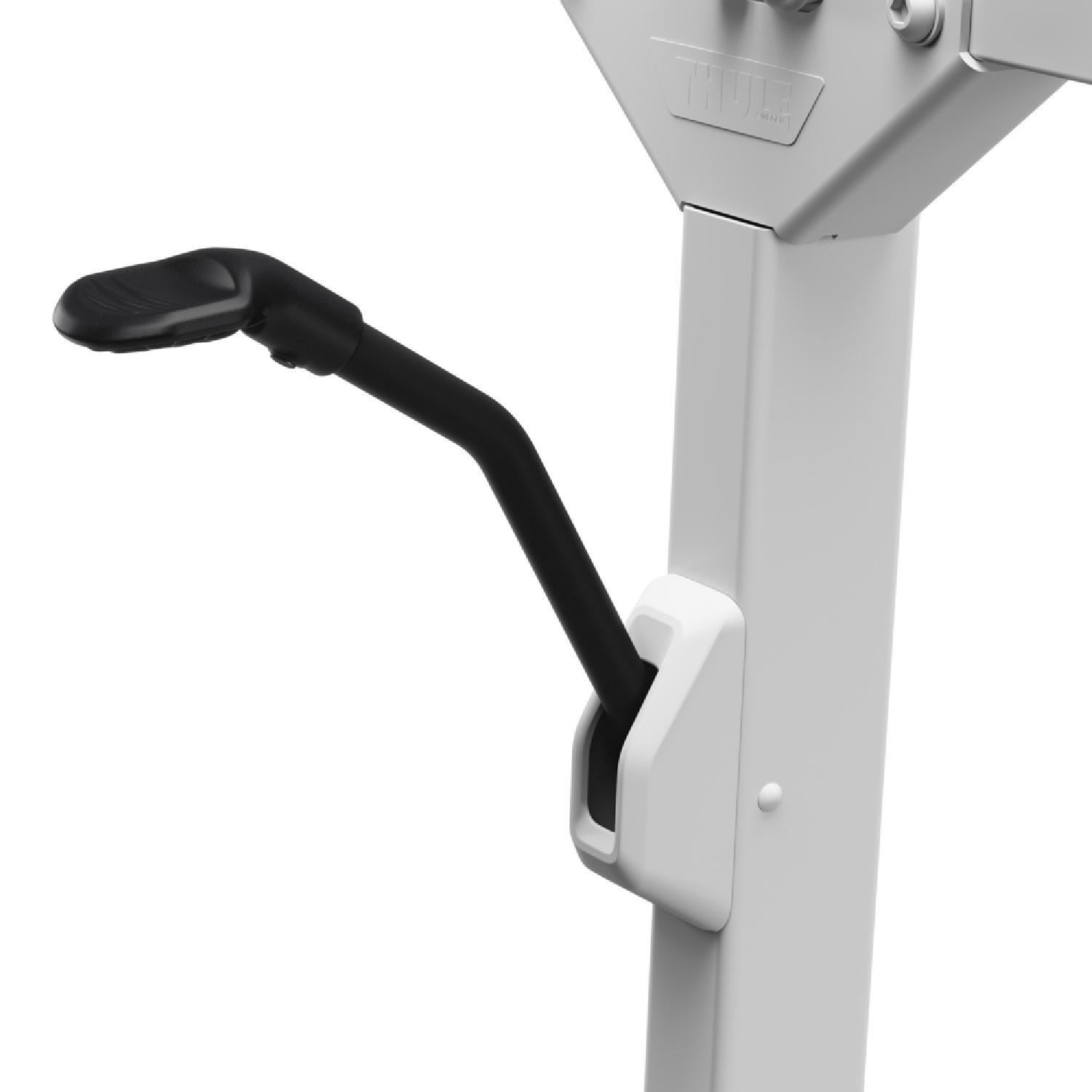

• Dual direction tilt assist damper with memory function: The hydraulic damper provides weight assistance, making it easier to both lower and raise the rack with bikes fully loaded. Accessible tilt release handle for tilting the rack. The rack locks itself when tilted down in the load position. By gently pushing the handle down, the memory function activates which allows the user to let go of the handle and use both their hands to push the rack back up again

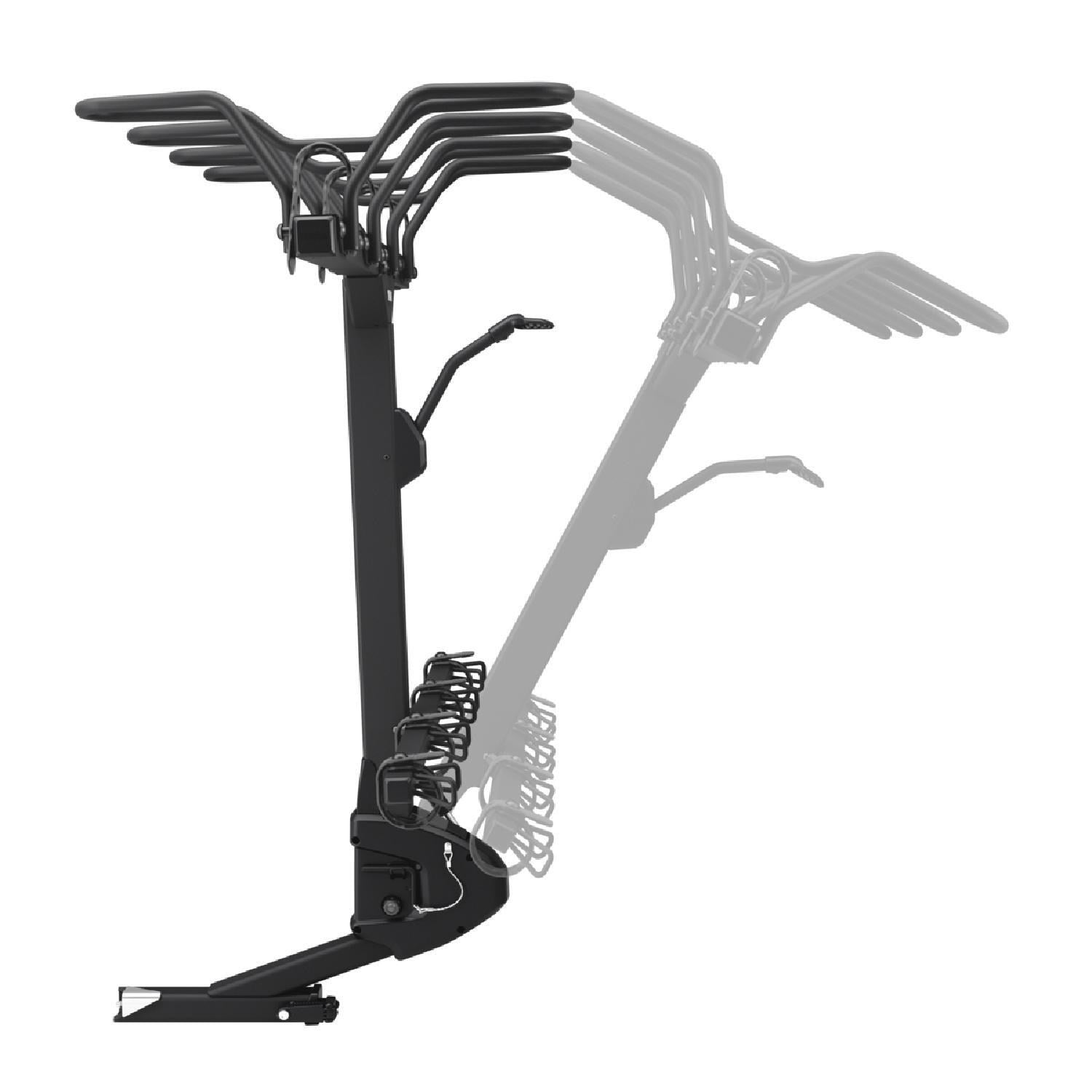

• Easy trunk access: With bike mounted, the trunk is accessible with a push down handle tilt.

• Compatible with the full fleet of bikes: 24-29" Wheels (24" accessory insert sold separately) with tires wide as 5" (3-5" accessory wheel basket sold separately).

• High load capacity: The high load capacity of 55 lbs per bike and a max carrier load capacity of 220lbs, makes it possible to transport the heaviest of bikes and lighter E-bikes.

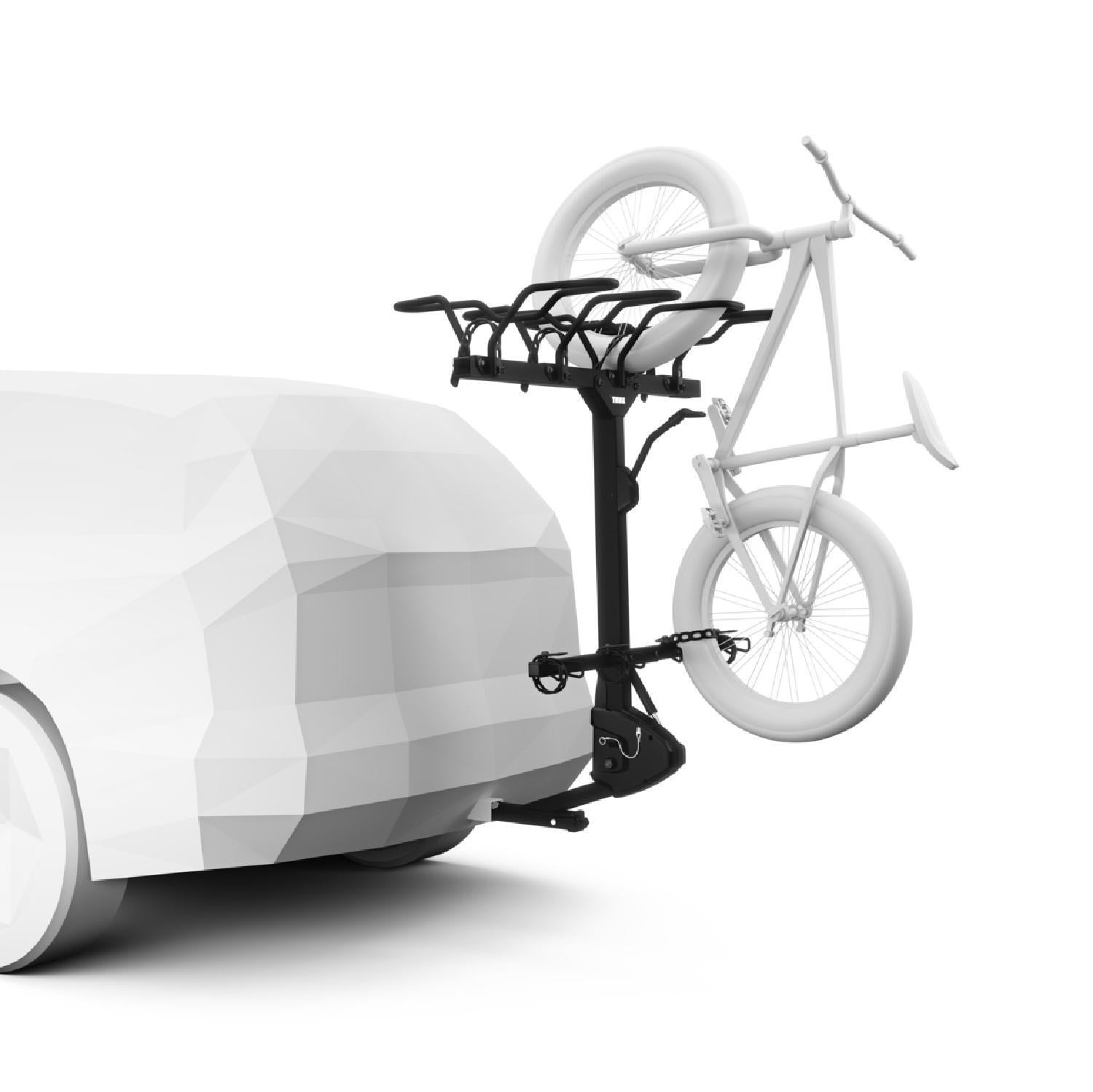

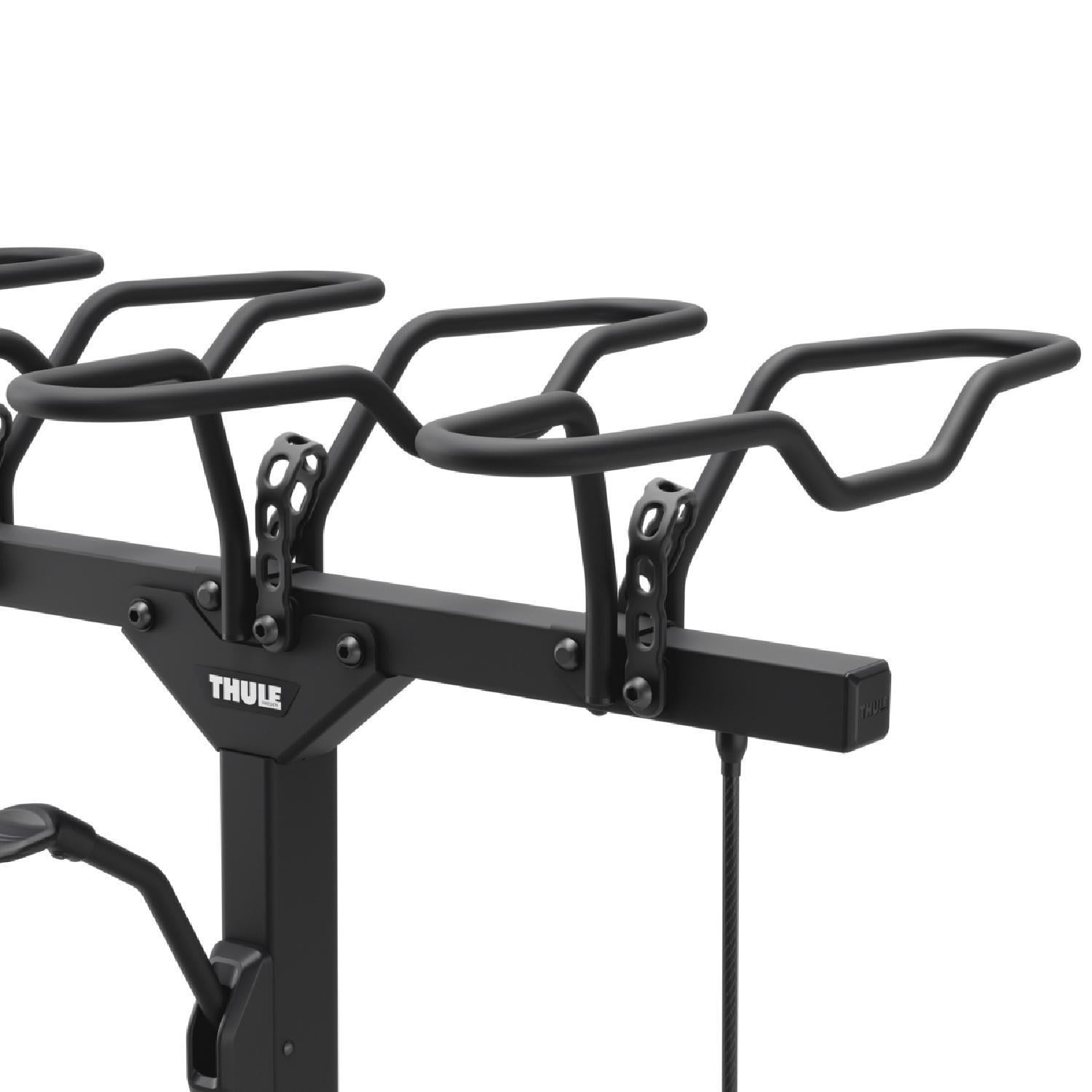

• Convenient roll in and roll out bike load: Quick and easy bike loading and unloading of bikes with limited to no lifting required. Wheel baskets designed to easily roll in and out the bikes while the rack is tilted down.

• No frame or fork contact: Rubber contact only to prevent any frame or fork contact.

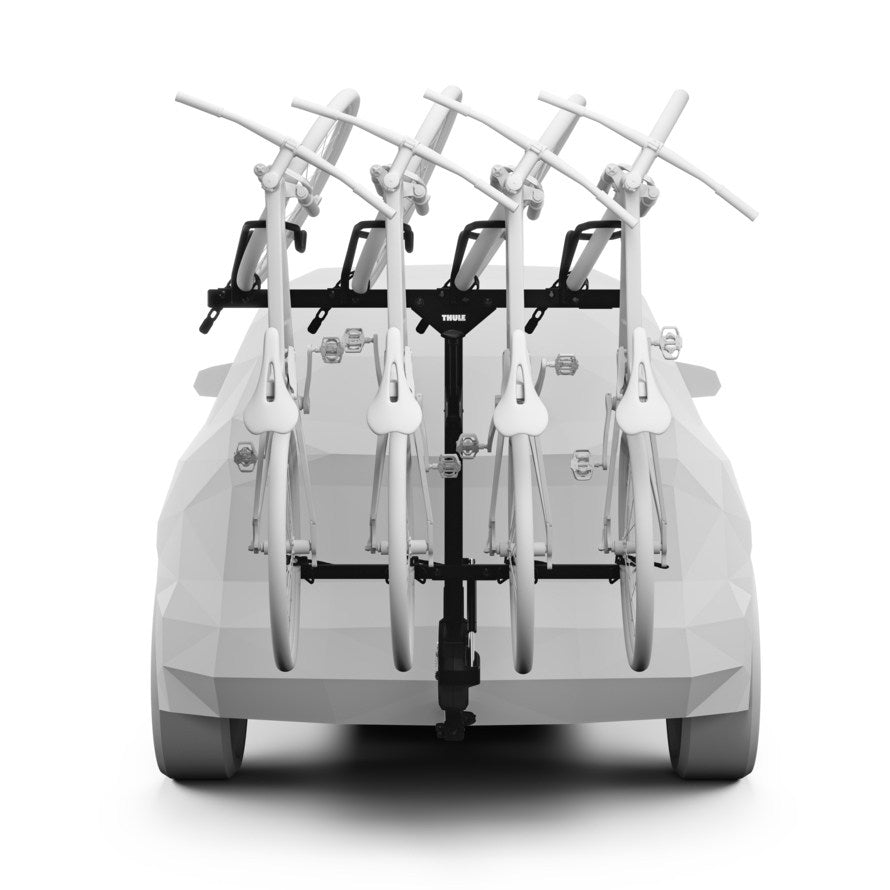

• Generous spacing between bikes: Generous 12" distance between bikes reduces risk of bike-to-bike contact.

• Made for long wheelbases: Extra-Long wheel holders enable easy transport of bikes with long wheelbases up to 53".

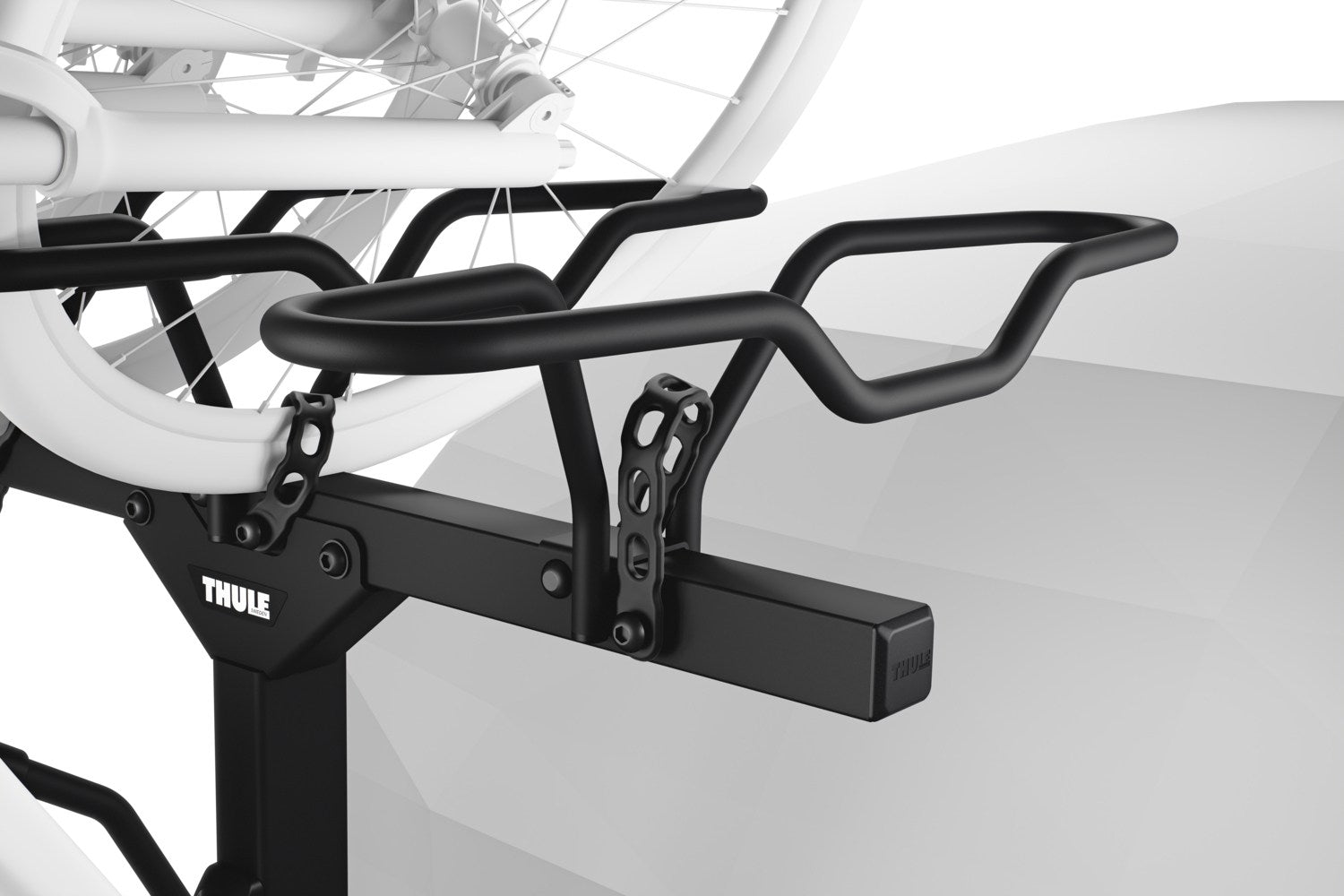

• Easy fastening of tires: Resilient and durable wheel straps for quick and secure fastening of tires up to 3".

• Locks for safety: Integrated hitch bike lock to secure your rack to your car.

• Quick mounting: Hit the trails faster with the Tool-free AutoAttach system with easy grip lever that allows for simple and secure mounting and removal of the rack.

• Off-road Use: This product is intended for use on public and private roads, including off-roads such as gravel roads, forest service roads and access roads. Refer to definition in the safety instructions.

• RV Travel: This product id approved for motorized RV travel at reduced load capacity. It is essential to follow the 40% load reduction guidelines provided in the fitting instruction for safe & optimal performance.

_________________________________________________

Specifications

Max number of bikes: 4
Load capacity: 220 lb
Max bike weight: 55 lb
Dimensions (LxWxH): 30 x 48 x 58 in
Weight: 72.3 lb
Max tire width: 3" (up to 5" with Thule Revert fatbike wheel basket)
Wheel size range: 24-29" (24" with Thule ReVert 24" wheel adapter)
Max wheelbase: 1350 mm
Distance between bikes: 12 in.
Tilt function (with bikes): yes
Fits 1.25" receivers: NO
Fits 2" receivers: yes
One Key System Compatible: yes
Bike lock included: NO
Receiver lock included: yes
Off-road use: Yes, refer to definition in the safety instruction
RV Travel: Yes, refer to definition in the fitting instruction
